Chroma Model 8630

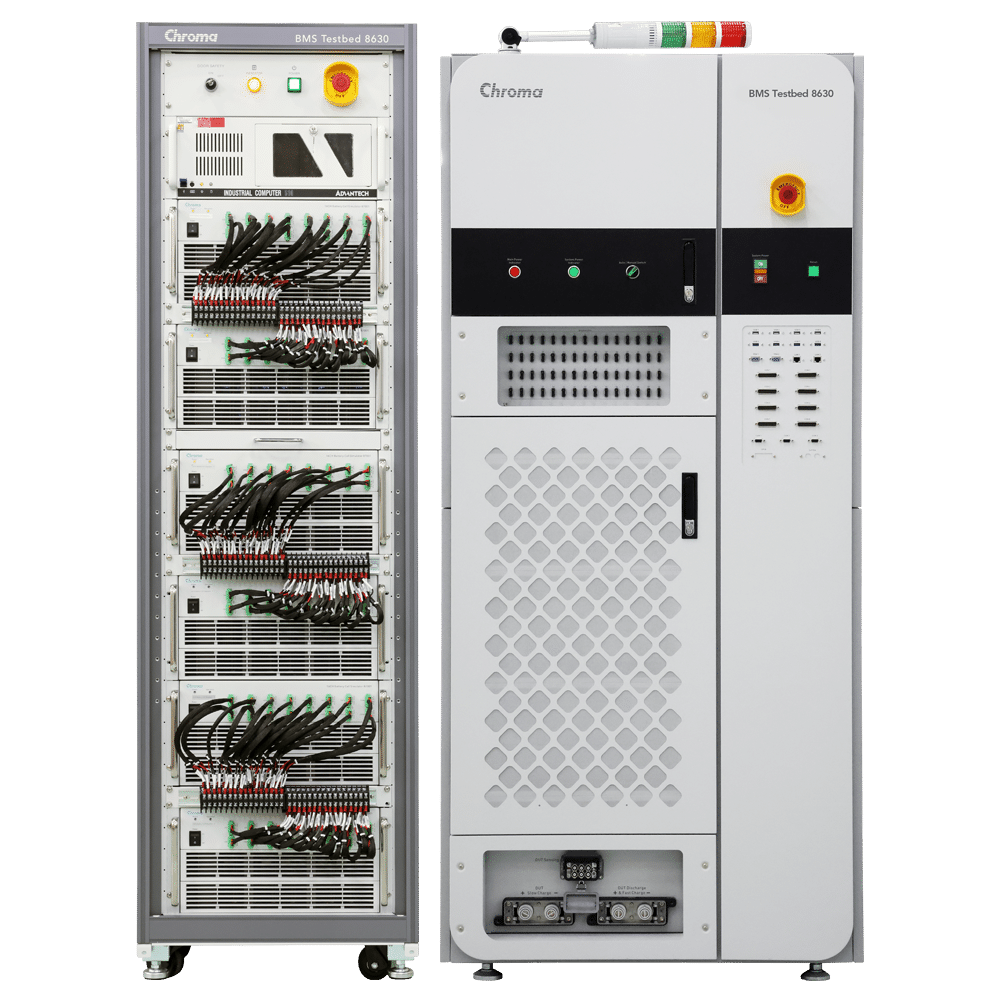

BMS Power HIL Testbed
Simulates precise cell voltages, battery module current profiles, thermal sensor signals, and insulation resistance to validate Battery Management Systems under real dynamic loads.
Next-Gen Simulation Tech
Hardware-in-the-Loop (HIL) Power Testbeds
Chroma's Power HIL architecture bridges real power electronics with real-time signal simulation, allowing validation of high-voltage powertrain systems before final vehicle integration.
Chroma Model 8620
OBC & DC-DC Converter Power HIL Testbed
Flexible test platform for validating 800V onboard chargers and bi-directional DC-DC converters under extreme electrical grid fluctuations and fault scenarios.
Chroma Model 8610

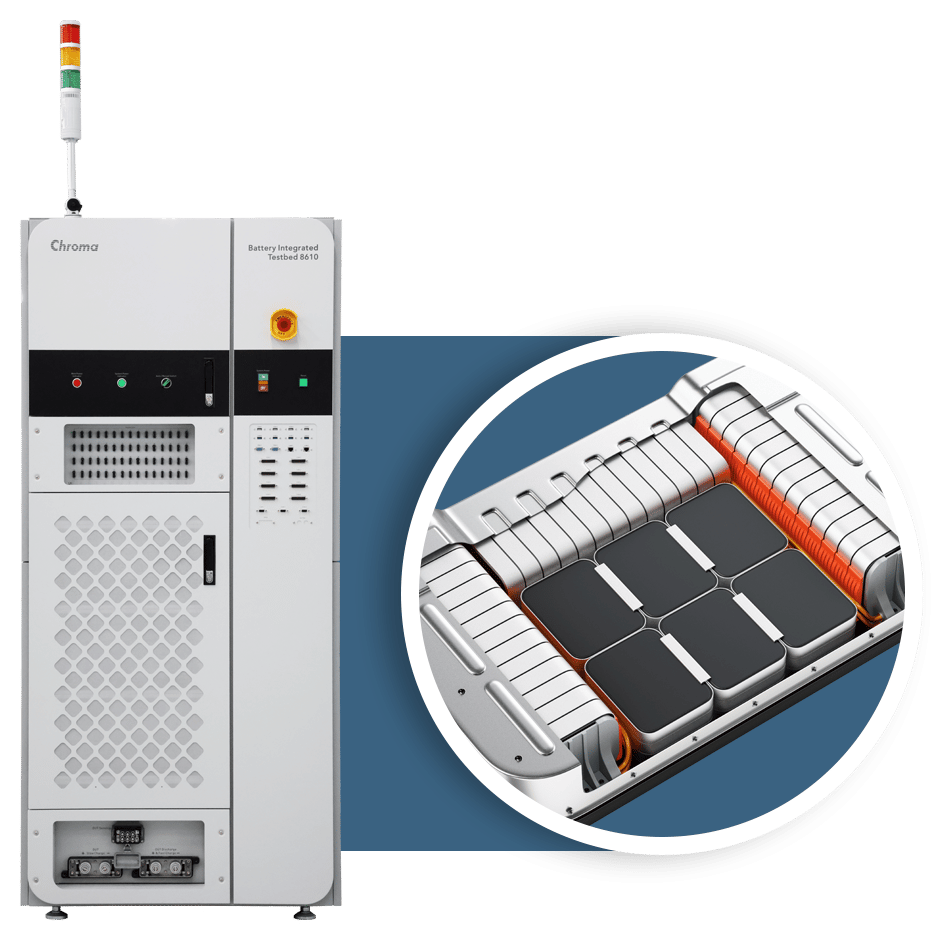

Battery Pack Power HIL Testbed
Designed for EV battery module and pack development, integrating dynamic thermal management, high-voltage cycling, and fault insertion with sub-millisecond response time.
High Voltage & Efficiency
Automated EV Power Conversion Validation
Modern electric vehicles rely on complex power electronic units, including bi-directional On-Board Chargers (OBC), high-voltage DC-DC converters, and main traction motor inverters. Operating at voltage levels up to 800V and higher, these components require rigorous testing during both design validation (DVT) and high-volume mass production.
Chroma's Automated Test Systems (ATS) combine high-precision bi-directional DC sources, regenerative AC electronic loads, and power meters into a cohesive, open-architecture software environment (PowerPro 5). Enjoy reduced test execution times, automated data collection, and ISO-compliant reporting.
- Bi-directional power flow testing for V2G, V2L, and V2H validation.
- Up to 92% energy regeneration back to the grid for maximum operational cost reduction.
- Built-in safety interlocks for high-power, high-voltage lab environments.
Interoperability & Standards

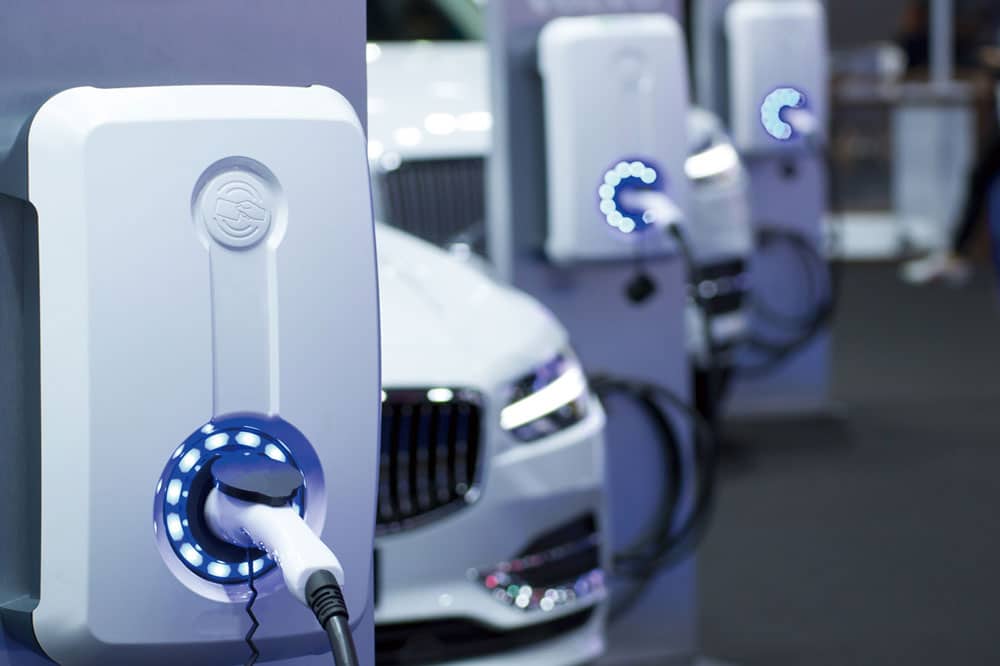

EVSE Charging Infrastructure Test Systems
Global adoption of electric vehicles depends on flawless interoperability between EV Supply Equipment (EVSE) and on-board chargers. Chroma delivers industry-standard test solutions compliant with SAE J1772, ISO 15118-20, DIN 70121, GB/T, and NACS standards.
Our automated systems simulate real-world EV charging states, control pilot (CP) signals, proximity detection (PD) faults, and extreme AC grid disturbances. Verify liquid-cooled high-current DC fast chargers under full power conditions with uncompromised accuracy.
- ISO 15118-20 Bi-directional AC/DC charging communication protocol simulation.
- Multi-coupler fast charging verification capability boosting throughput by 40%.
- Automated fault injection for safety-critical ground fault interrupts (GFI).
Chroma PowerPro 5: GB/T & ISO Charge Recording & Playback
Capture physical charging signals on location and play them back in your test lab to reproduce field anomalies and validate firmware fixes rapidly.
Testing High-Voltage Solid-State Transformer (SST) Modules
Comprehensive test methodologies for HVDC ±400V and 800V charging station transformer modules engineered for ultra-fast charging hubs.
Liquid-Cooled High-Current Fast Charging Interoperability
Thermal and electrical analysis techniques for megawatt-level EV charging connectors operating above 500A continuous current.
Zero-Defect Quality Control
High-Voltage Electrical Safety & Hipot Testing
With EV battery architectures pushing operating thresholds up to 800V and 1000V, electrical insulation safety is vital to prevent catastrophic short circuits and protect passengers. Compliance with international standards such as UL 2594, IEC 60601-1, and ISO 6469 demands precise safety analyzers.
Chroma's electrical safety analyzers execute AC/DC Hipot, Insulation Resistance (IR), Ground Bond (GB), and Leakage Current testing in a unified sequence. Advanced Partial Discharge (PD) measurement detects microscopic insulation defects in EV connectors, busbars, and battery jelly-rolls long before electrical breakdown occurs.
- Model 11210: High-speed battery cell insulation tester with PD/Flashover detection.
- Multi-channel switching modules for high-throughput production line automation.
- Precision ground bond testing up to 40A to guarantee vehicle chassis earthing integrity.
Reliability Under Thermal Stress
EV Traction Motor & Wound Component Testing

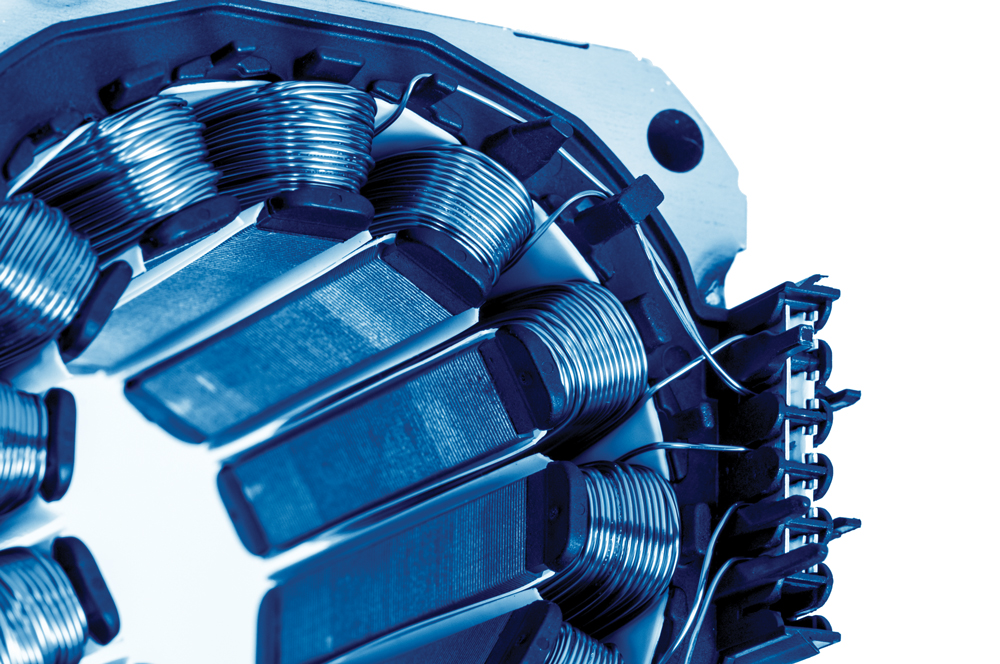

Traction motors operate under intense thermal stress and high switching frequency voltage spikes (dV/dt) from SiC inverters. Over time, corona discharge between motor stator turn-to-turn insulation leads to premature winding breakdown.
Chroma’s Wound Component EST Analyzers (Model 19036) integrate impulse winding surge tests with high-frequency resonant waveform analysis to identify latent stator insulation flaws, turn-to-turn shorts, and magnet wire pinholes before motor assembly.
- High-voltage impulse surge test up to 10kV with Area Size Comparison (AREA) calculation.
- Corona discharge detection preventing long-term motor reliability field failures.
- 4-terminal Kelvin resistance measurement for micro-ohm stator coil resistance accuracy.
Turnkey Battery Manufacturing Tech
EV Battery Pack, Module & Cell Testing
From initial battery cell formation to module/pack EOL (End-of-Line) production testing, Chroma delivers scalable test systems engineered for lithium-ion, sodium-ion, and solid-state chemistries.
Chroma Series 17040 / 17020
Regenerative Battery Pack Test Systems
High-power bi-directional charge/discharge cyclers with energy recovery up to 92%. Supports voltage ranges up to 1000V DC and parallel power expansion to megawatts.
Chroma Model 87001
Multi-Channel Battery Cell Simulator
Isolated multi-channel DC power sources simulating individual battery cell voltage outputs to evaluate BMS balancing functions, over-voltage, and under-voltage protection limits.
Chroma Model 11210

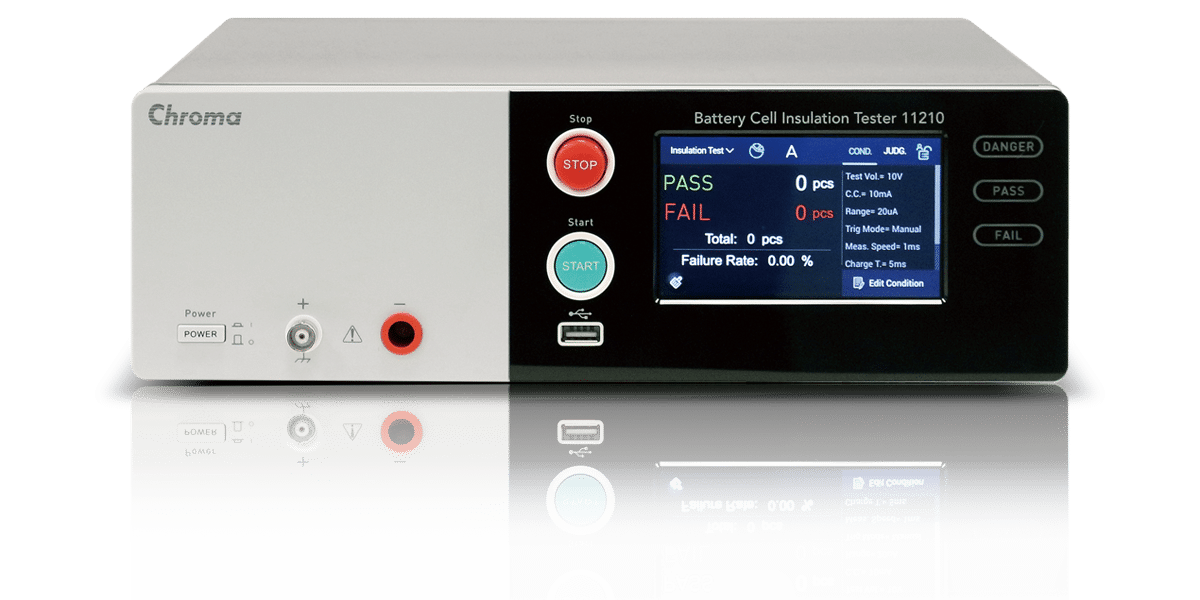

Battery Cell Surge & Insulation Tester
Detects internal short circuits and separator breakdown in lithium battery jelly-rolls during dry cell production stages, guaranteeing maximum safety before electrolyte filling.
Accelerate Your EV Power Electronics & Battery Validation
Consult with our senior application engineers for custom ATE configuration, ISO/IEC test plan compliance, and technical datasheets tailored for global automotive procurement.
Get Catalog
