Validating High-Density AI Server Power Architecture
Artificial Intelligence (AI) compute clusters and GPU accelerators are pushing data center power density to unprecedented levels. Modern AI server racks demand high-efficiency, multi-kilowatt power supply units (PSUs), 48V direct-to-chip power distribution, low-voltage high-current Voltage Regulator Modules (VRMs), and dynamic Point-of-Load (POL) converters capable of executing sub-microsecond transient steps.
Chroma provides end-to-end electrical test solutions tailored for AI hardware OEM/ODM manufacturers, system integrators, and hyperscale data center operators. Our instrumentation enables rigorous validation from chip-level VRM characterization to full 100kW+ rack thermal and electrical load verification.
Full Stack AI Power Validation Coverage
- Server PSUs & Power Shelves: Efficiency, power factor, and dynamic load testing.
- Battery Backup Units (BBU): Bidirectional DC-DC cycling & emergency response.
- Motherboard VRMs & POLs: Ultra-low voltage (sub-1V) & high-current (2000A+) loading.
- Complete Server Racks: Up to 100kW+ power validation with 92% energy recovery.
Key Parameters for AI Server Power Reliability
To ensure uninterrupted AI compute performance and prevent thermal runaway or power distribution network (PDN) failures, hardware engineers rely on Chroma's test capabilities across five key pillars.
1. PSU & Power Shelf Efficiency
Verifying compliance with 80 PLUS Titanium and Open Compute Project (OCP) power shelf standards across total load ranges from light load to peak stress.
2. Power Integrity & POL Voltage
Sub-millivolt ripple measurement and transient response testing on 48V-to-12V and 12V-to-0.8V voltage regulator modules under high slew rate current steps.
3. Thermal & Liquid Cooling Balance
Simulating continuous high-power load profiles to evaluate liquid cooling cold plate efficiency, thermal management, and ambient heat distribution.
4. Transient Load & EDPP Testing
Reproducing realistic AI workload spikes (e.g., LLM training burst cycles) with slew rates up to sub-25ns step speeds to test power network stability.
5. Regenerative Energy Recovery
Recycling up to 92%-93% of discharged power back to the grid during rack-level thermal burn-in, reducing lab power demands and operating expenditures.
6. International Safety Compliance
Executing hipot, ground bond, and insulation resistance test routines in full compliance with IEC 62368-1 and UL 60950-1 enterprise server standards.
Server Cabinet Power & Thermal Verification Setup

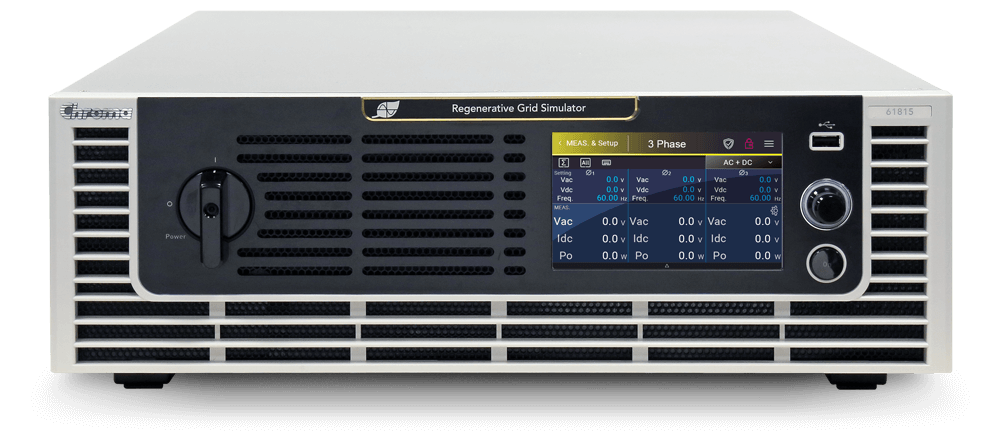

In a standard 100kW AI Server Cabinet configuration housing multiple liquid-cooled server blades, grid power (480V 3-Phase) is supplied to a high-capacity power shelf. The high-voltage AC input is simulated using a Chroma 61800 Regenerative Grid Simulator, providing grid disturbance injection, phase imbalance, and harmonic testing.
Power is converted to a 48V DC backplane and distributed to local server cards. To evaluate heat dissipation and full-capacity performance without wasting massive electricity, the output is routed into a Chroma 63700 Regenerative DC Load System. Under a full 100kW load test, the setup draws only 8kW net power from the facility grid due to 92% regeneration efficiency.
Simulating Dynamic Loads for AI Microprocessors & GPUs
Modern AI processors (GPUs, TPUs, and FPGAs) operate at extremely low voltages (sub-1.0V) while drawing current exceeding 1,000A to 2,000A during peak execution matrix routines. Testing these power delivery networks requires specialized low-voltage DC electronic loads with minimal lead inductance.
Chroma's Ultra-Low Voltage DC Electronic Loads feature heavy-duty copper busbars and ultra-fast control loops. Capable of sinking 2,000A at 0.2V and 1,000A at 0.1V, these loads prevent premature voltage drop compensation errors and provide sub-microsecond transient response for exact GPU load profile emulation.
Best Selling AI Server Power Test Equipment
Recommended test instruments for AI server PSU validation, power shelf dynamic testing, POL converter characterization, and cabinet-level power simulation.
Unified transient/DC load simulator with sub-25ns step response. Designed for GPU power delivery network (PDN) testing up to 1,800A / 1.5kW per module.
High-power 80kW & 120kW regenerative electronic load systems. Supports voltages up to 1,000V and current to 2,650A with 80% energy recovery.
6kW, 12kW, and 18kW multi-range DC power supplies providing output up to 1800V and 540A for server power rail and component qualification.
Specialized DC load designed for 2,000A @ 0.2V testing. Integrated low-inductance copper busbar for VRM, POL, and high-density DC-DC evaluation.
6kW to 18kW modular regenerative loads with 93% energy recovery efficiency. Reduces heat generation during server power burn-in.

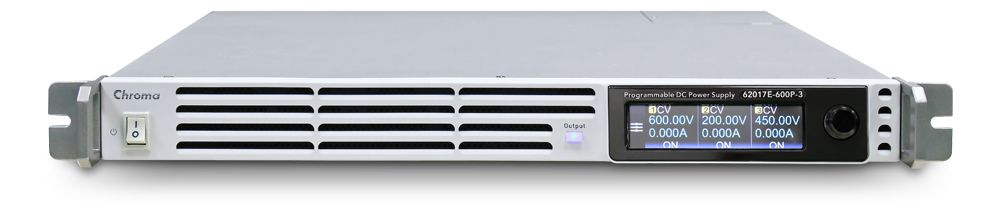

600W to 5000W programmable DC supplies featuring 16-bit readback accuracy, ideal for automated test racks and motherboard rail simulation.

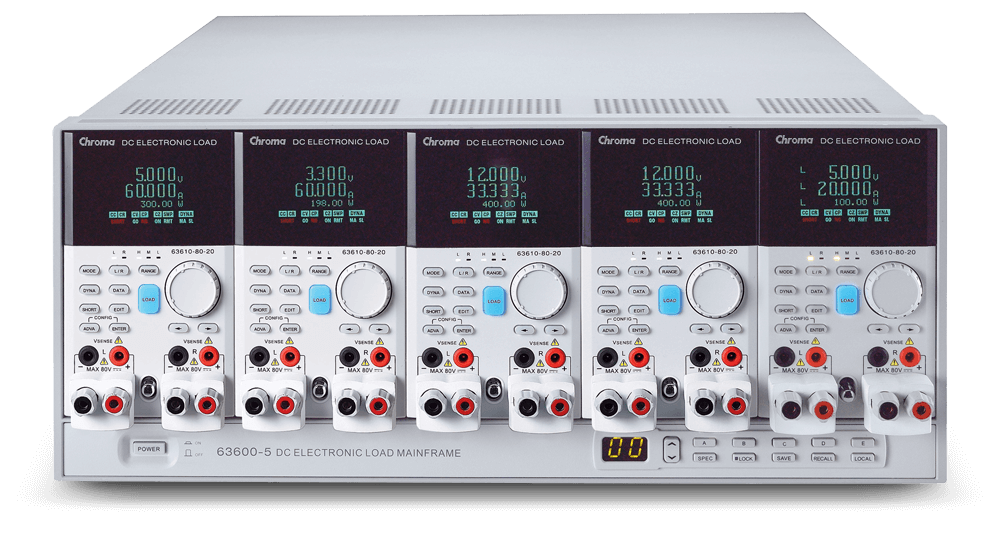

Heavy-duty DC electronic loads scaling from 2kW to 24kW (parallelable to 240kW). Excellent for severe dynamic load stress testing.

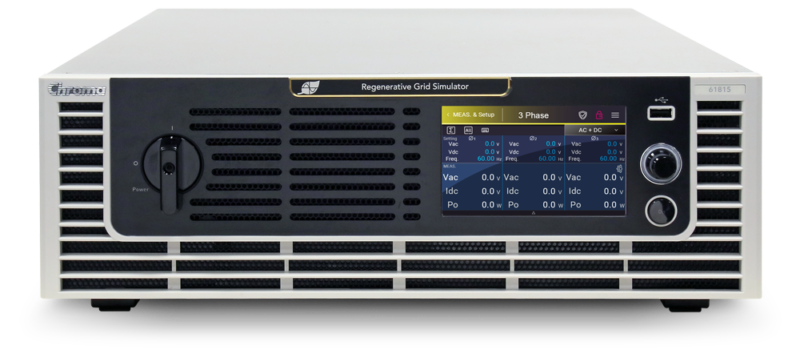

Full 4-quadrant AC grid simulator from 45kVA to 105kVA. Simulates 3-phase grid voltage transients and harmonics for data center power equipment.
Optimize Your AI Server Power Testing Workflow
Speak with our power test application engineers to design customized automated test systems, request product demonstrations, or receive technical datasheets tailored for your data center infrastructure requirements.
